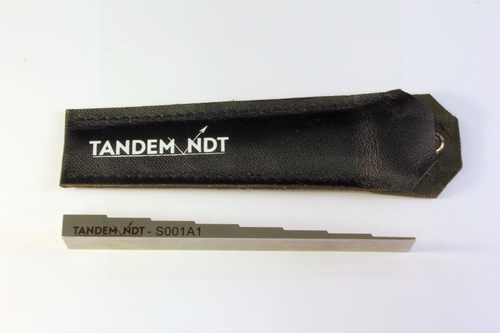

Step Wedge ISO 16946 1-2-3-4-5-6-7-8mm

Each S355 Carbon Steel ISO 16946

Step Wedge ISO 16946 1-2-3-4-5-6-7-8mm
250.00 *Prices are exclusive of VAT
Article code11250
ISO16946 complient Stepwedge, 8 steps 1,2,3,4,5,6,7,8 mm.

Carbon Steel S355, complete with Material certificate and Declaration of Conformity.
Delivered in leather pouch.

EN ISO16946:2017  is a new standard for Non-destructive testing - Ultrasonic testing - Specification for
step wedge calibration block
It requires high precision (max. -0.02 on the step thicknesses) and full traceability on all treatments and inspections.

ISO16946:2017 consists of;

Made from steel of grade S355J0 in accordance with EN 10025-2 or from equivalent steel grade
Heat treatment acc. procedure
Ultrasonic inspection
Measurement report
