Step Wedge ISO 16946 2-4-6-8-10-12-14-16-18-20mm - Each
NDT equipment, repair and calibration.

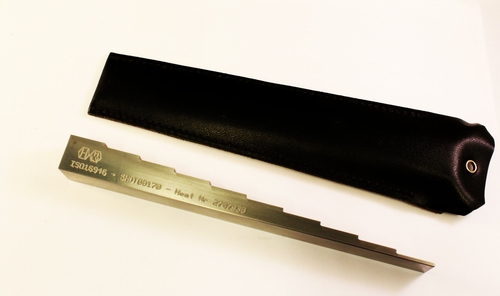

Step Wedge ISO 16946 2-4-6-8-10-12-14-16-18-20mm

Each S355 Carbon Steel ISO 16946

Step Wedge ISO 16946 2-4-6-8-10-12-14-16-18-20mm
295.00 *Prices are exclusive of VAT
Article code11251
ISO 16946 compliant step wedge,
10 steps 2-4-6-8-10-12-14-16-18-20mm

Carbon Steel S355, complete with Material certificate and Declaration of Conformity.
Delivered in leather pouch

EN ISO 16946: 2017 is a new standard for non-destructive testing - Ultrasonic testing - Specification for
step wedge calibration block
It requires high precision (max. -0.02 on the step thicknesses) and full traceability on all treatments and inspections.

ISO 16946:2017 consists of:
Made from steel of grade S355J0 in accordance with EN 10025-2 or from equivalent steel grade
Heat treatment acc. procedure
Ultrasonic inspection
Measurement report
