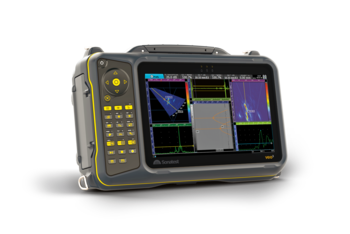

VEO3

Smart portabel phased array solution

VEO3
Price on request *Prices are exclusive of VAT
Article code10030
Features
Superior Digital Technology
The Veo3 offers superior data throughput and unsurpassed computational capacity. It delivers fast and accurate results using an impressive 32 channel PA beamformer that provides exceptional SNR, using enhanced digital signal processing.

Data file size is not a concern for the Veo3 thanks to its 64-bit Linux operating system because it can count on a fast 128GB SSD memory capacity allowing you to record huge amounts of information in a single acquisition file.

With its advanced technology the Veo3 is unique in allowing real-time multi-scan/multi-technique capabilities.  Simultaneous TFM, PA and TOFD views are now possible.

Intuitive Menus and Workflow
The intuitive menu system is application and workflow driven, with set up and operation swiftly becoming second nature. Integrated help and wizards guide the user through scan set up whilst optimisation tips ensure the Veo3 always performs at the highest level. Fast and efficient wizards for sound velocity; wedge delay, TCG, DAC, TOFD setup and encoder calibration are all provided as standard.

The inspection plan shows the operator in 3D where probes are positioned on the test part, simplifying the inspection set up and providing an inspection reference for reporting. Using the latest computer technology, data can be permanently recorded for processing and report generation. All adjustments to focal laws are instantaneous, with angle resolution to 0.1° and up to 1024 focal laws without loss of performance.

FMC/TFM
With its unique architecture the Veo3 can generate up to six live TFM scans, produced from multiple FMC sources on different probes, and also generates TFM images of up to 500k pixels with a maximum resolution of 100 pixel per mm without limiting the number of pixel per axis.

All of the data received during Full Matrix Capture (FMC) scanning can be recorded on the Veo3.  As a result, further detailed analysis can be performed including comparison with previous inspection data to identify trends and flaw/corrosion growth rates.

utstudio    Create, Analyse, Report
UTstudio+ makes inspection data management easy.
Loaded with a comprehensive user interface, data analysis and setup file construction become natural and straight forward. From customised views to additional gates, measurement tools or refined colour palettes, UTstudio+ helps you generate extended reports and much more.

Suitable for TFM, phased array and conventional ultrasonic technologies, UTstudio+ is able to accomplish amazing things and get the job done for a multitude of simple advanced applications.

One UTstudio+ licence FREE with your Veo3 purchase

utmap   Stitch, Analyse, Export
UTmap is analysis software that creates a Tiled Scan (T-Scan) and generates small to large images of the inspection results. Each C-Scan can be positioned or stitched together to form a T-Scan and represent the part geometry. Once assembled, the T-Scan represents a meaningful image for analysis and reporting.

UTmap also offers features including the ability to import drawings, outlines and information as images to overlay on the T-Scan and automatically providing precise flaw data and dimensions.

UTview Review, Collaborate, Trust
Loaded with comprehensive user interface, inspection data and results are now freely accessible to anyone who wants to review them. From customised views to additional gates, measurement tools or refined colour palettes, UTview helps sharing results with collaborators to get the job done faster.

xPair Share, Control, Transfer
Using Sonatest’s Xpair software application, Veo3 can be fully used and controlled remotely, via a simple network connection.

Xpair is a PC-based software application solution to manage data transfer and remote control of instruments in the field wherever a network connection is available. Moreover, with the Xpair Cloud option, a user can access and remotely pilot the instrument of a colleague located 1000s of km away using a mobile or wired internet connection.

The VEO+ electronic & software is powered by a new architecture offering superior data throughput and unsurpassed computational capacity to deliver fast and accurate results in the most demanding conditions. It allows inspectors to easily create high resolution volumetric scans and record very precise data sets with exceptional measurement precision.
These performances come from an impressive 32 channel PA beamformer providing exceptional SNR, enhanced digital signal processing and the legendary Sonatest ActiveEdge® pulser technology. Thanks to its Linux® 64-bit operating system and its fast 128GB SSD memory capacity, data file size is not a concern for VEO+. Data compression is yet another feature allowing one to record huge amount of information in more manageable data file size.

Download brochure VEO3

And The TFMI Feature
