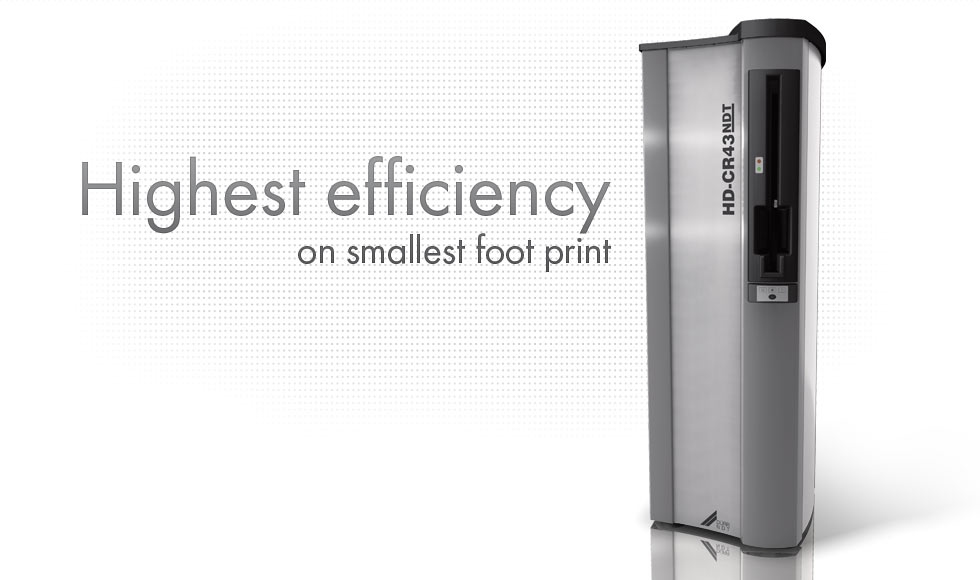

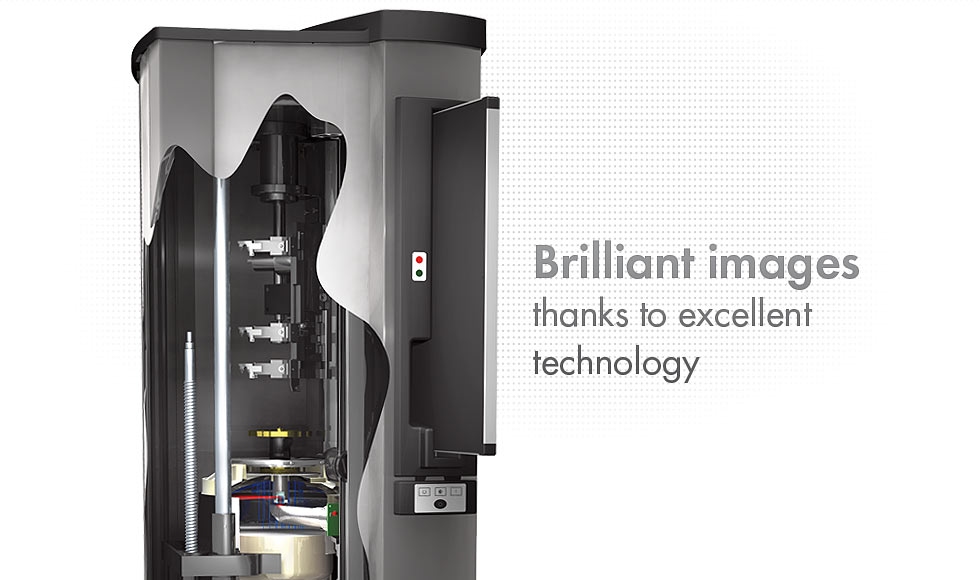

HD-CR 43 NDT Automatic Imaging Plate Scanner

Each TreFoc technology BSR upto 40 um

HD-CR 43 NDT Automatic Imaging Plate Scanner
HD-CR 43 NDT Automatic Imaging Plate Scanner
HD-CR 43 NDT Automatic Imaging Plate Scanner
HD-CR 43 NDT Automatic Imaging Plate Scanner
Price on request *Prices are exclusive of VAT
Article code55920
Technicaal data
Dimensions (H x W x D)
113 x 41 x 46 cm
Weight
56 kg
Power supply
100-240 V / 50-60 Hz, max. 250 W
Temperature range
10 to 35° C
Noise level
< 39 dB(A)
PC-Connection
Ethernet (TCP-IP protocol)
Software
DÜRR NDT D-Tect
Resolution
Stepless selectable
HD-CR 43 NDT: 12.5 - 200 µm
CR 43 NDT: 50 - 200 µm
Basic Spatial Res.
HD-CR 43 NDT: 40 µm
CR 43 NDT: 100 µm
Grey level resolution
16 bit, 65,536 grey levels
Imaging Plate sizes
HD-IP plus 18x24IP 18x24
HD-IP plus 24x30 IP 24x30
HD-IP plus 35x43IP 35x43
Max. Cassettes / hour
∼68
Laser Class
Laser Class I (EN60825-1)
